Description
Experience the next level of water pressure with the TISOSI F-MHI-803Q
This intelligent pump system is designed to provide constant water pressure using advanced automation, ensuring seamless and efficient water delivery for your Home-Villa, Farmhouse, Building, Hotels, Agriculture-Irrigation & industries.
- The Power of Absolute Consistency: Experience the pinnacle of modern water pressure. Our intelligent Constant Pressure system instantly adjusts to water demand, ensuring the pressure never dips—even when running five different outlets at once. Enjoy a true luxury experience.
- Integrated VFD Technology: Comes with a Variable Frequency Drive (VFD) that ensures uninterrupted and consistent water pressure throughout the house, eliminates pressure fluctuations, and automatically maintains your desired water pressure.
- Maximum Energy Savings: The VFD automatically adjusts the pump motor speed according to water demand, reducing energy consumption.
- Automatic Sleep Mode: When no water is being drawn, the pump intelligently powers down, saving energy and reducing operational costs.
- Automatic Restart After Power Recovery: When power is restored after an outage, the pump automatically restarts and resumes normal operation, minimizing the need for user intervention.
- Maximum Power: With a powerful 5 HP motor and automatic variable speed operation, you get enormous power only when you need it. This clever Energy-Saving Operation translates into substantial savings on your electricity bill while handling the demands of hotels, large complexes, or multi-family homes.
Technical Specifications:
Feature: Detail:
Pump Horsepower (HP)1.81
Rated Power (kW)1.35
Max Flow Rate (m3/h)12
Max Head (meters)35

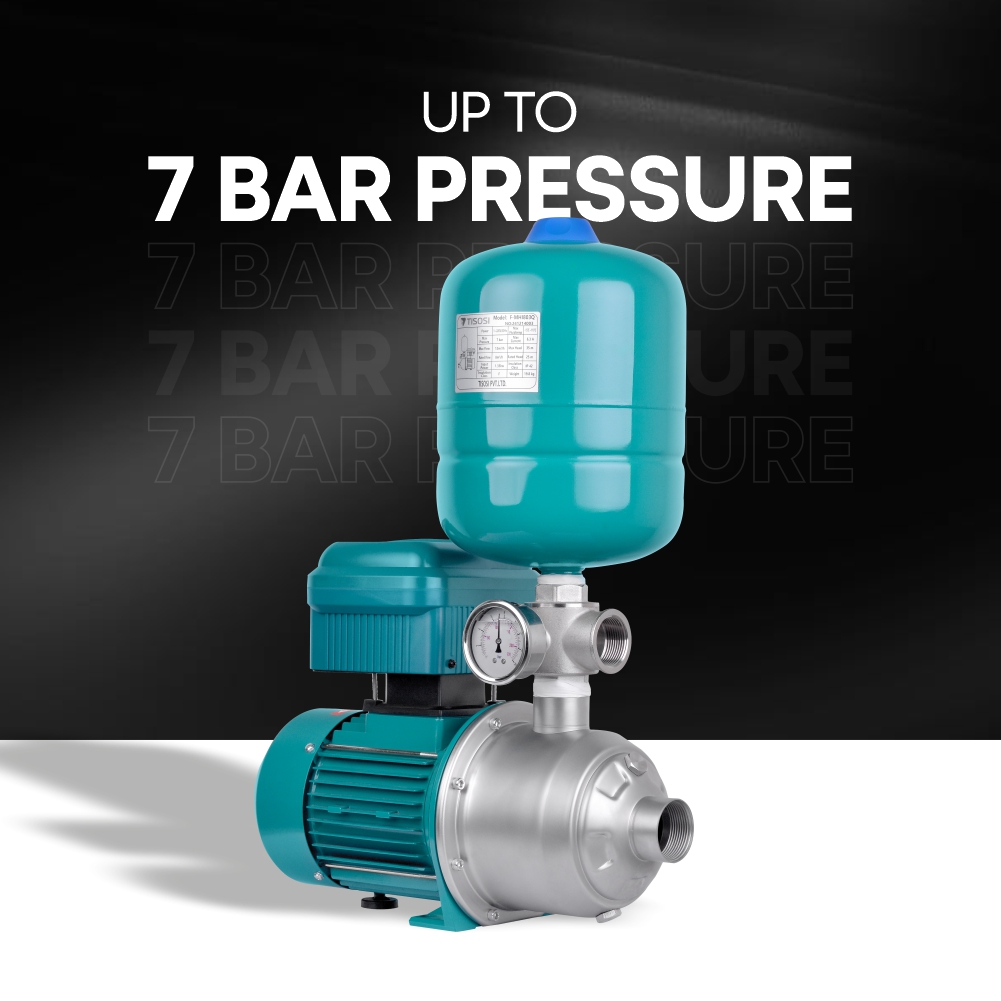

Max Pressure (Bar)7
Power Source1~220V / 50Hz
Protection ClassIP42
Installation & Dimensions:
Connection: Size:
Inlet Size 1.5”
Outlet Size1.25”
Overall Height (mm)316
Overall Length (mm)410
Weight (KG)19.8
Approved Fluids Clean Water
Construction Details:
Construction: Type:
Pump Body 304 Stainless Steel | Cast Iron
Impeller & Shaf304 Stainless Steel
Mechanical Seal Graphite & Ceramic
Included in the box:
• 8 Ltr. Pressure Tank
• VFD (Variable Frequency Drive) Inbuild
• 5 Way Connector With NRV
• Pressure Gauge
Ideal Applications:
- Homes & Buildings: Provides Consistent Water Pressure for high-rise apartments and offices, ensuring Silent and Efficient Operation for daily comfort.
- Agriculture & Irrigation: Perfect for Drip and Sprinkler Irrigation, delivering Strong, Steady Pressure across farmlands.
- Industry & Manufacturing: A reliable water source for industrial recirculation systems, including supply for Boilers, Cooling Towers, and Process Lines.
